CHRISTOPHER EHLERS

Kulturcafe Hellerau, Dresden

Kleiner Entwurf Baukonstruktion, Wintersemester 19/20

At the entrance to the Hellerau Festival Hall in Dresden, the new visitor:inside center unfolds and welcomes guests directly from the streetcar station.

The S-shaped floor plan takes up the architecture of the surrounding buildings, but clearly shows itself as a new building through the dynamics of the form. The free and moving envelope of the building invites to discover the interior in more detail and surprises with a high reception room, where the cultural café is located.

On the upper floor there is an exhibition and for cultural events there is a multifunctional hall on the first floor. The open and high design of the interior in combination with a wide window front creates a flowing connection between outside and inside.

The supporting structure consists of spatially tilted wooden beams and additionally stiffens due to the angling. The vertical wooden facade design emphasizes the angles of the building and is reminiscent of the dark wood cladding of the traditional garden city houses in Hellerau.

Group work with Jonas

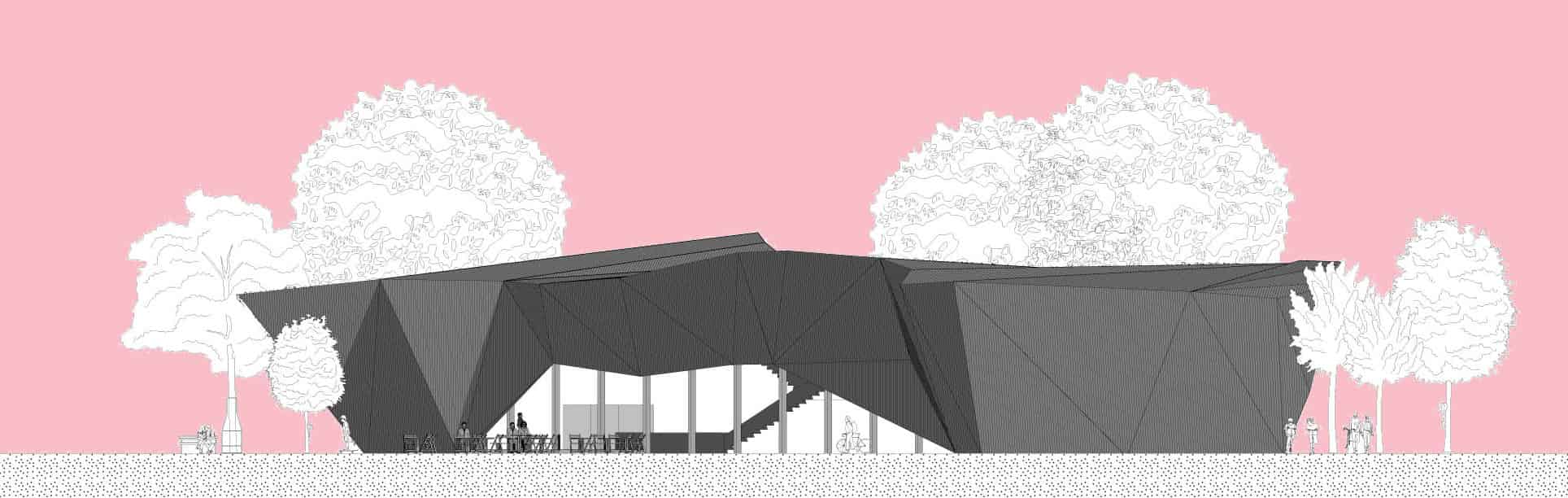

Project 2 - Bauko/Bauko-Ansicht.jpg
View South - The Visitor:Interior Center opens to the street side and invites you to visit.

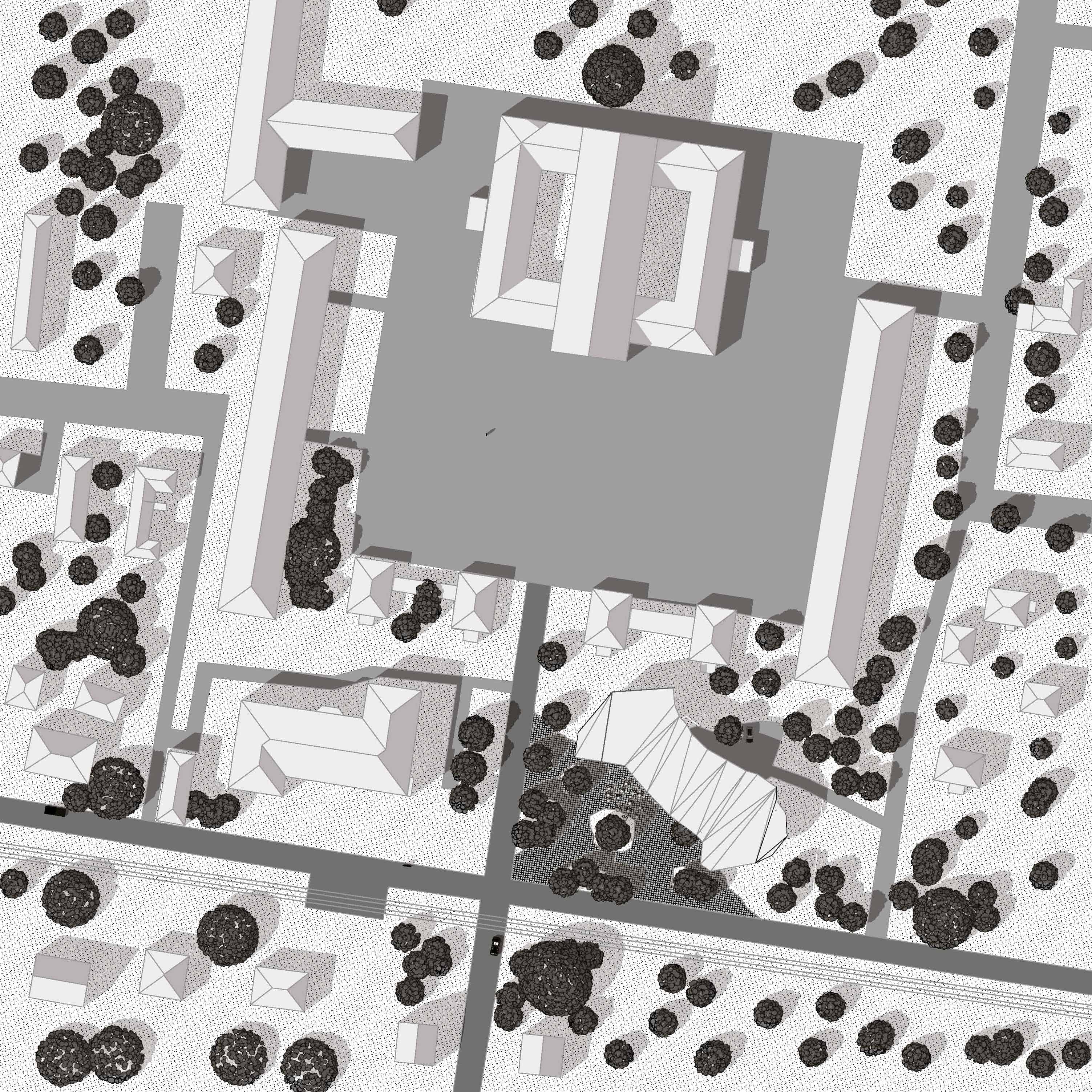

Project 2 - Bauko/Bauko-Lageplan.jpg
Site Plan
Project 2 - Bauko/Bauko-Grundrisse.jpg
Ground floor floor plan with café, store & event room / upper floor floor plan with exhibition area & offices
Project 2 - Bauko/Bauko-Schnitt.jpg
QuerschnCross sectionitt

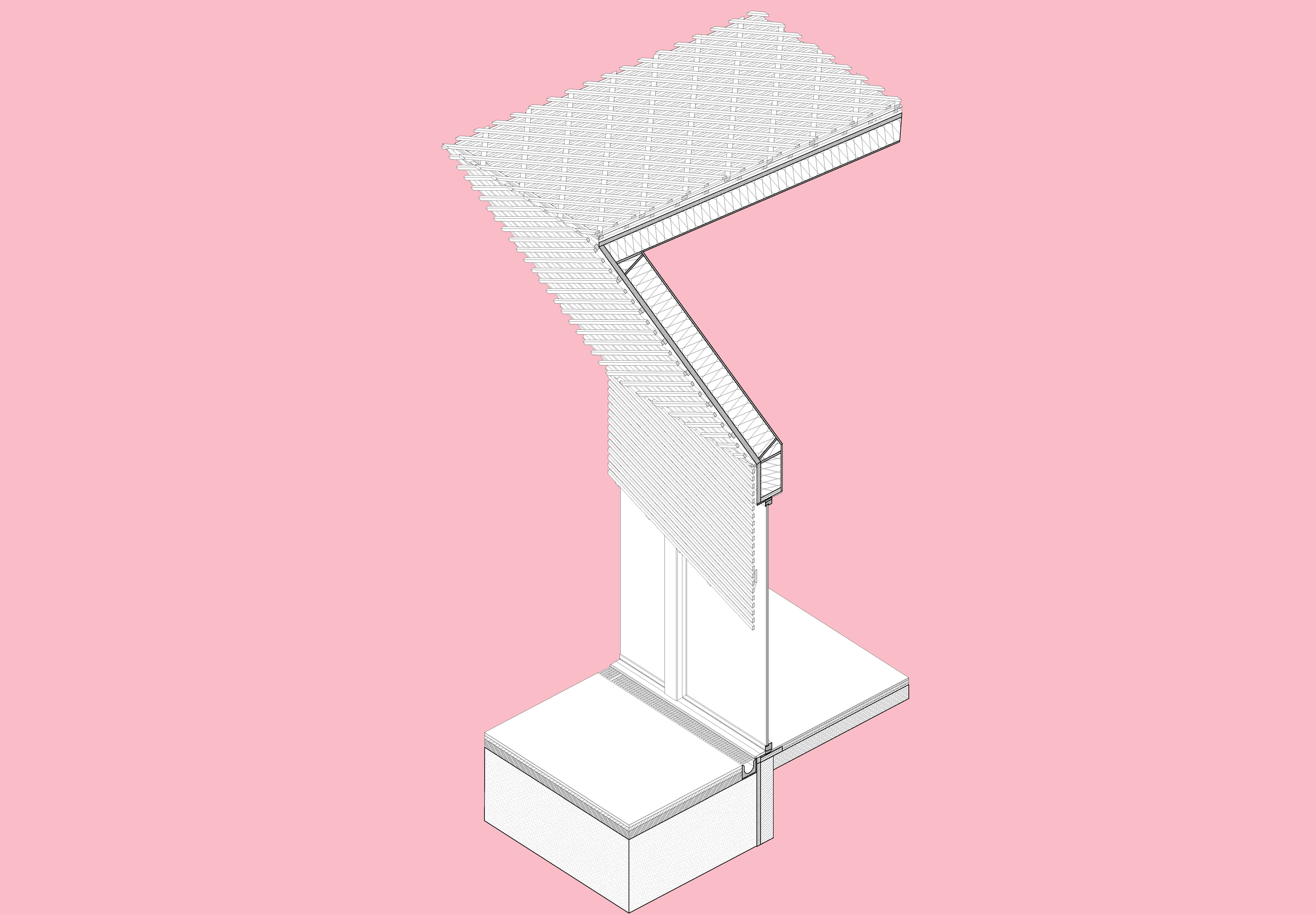

Project 2 - Bauko/Bauko-Iso.jpg
Isometric facade detail

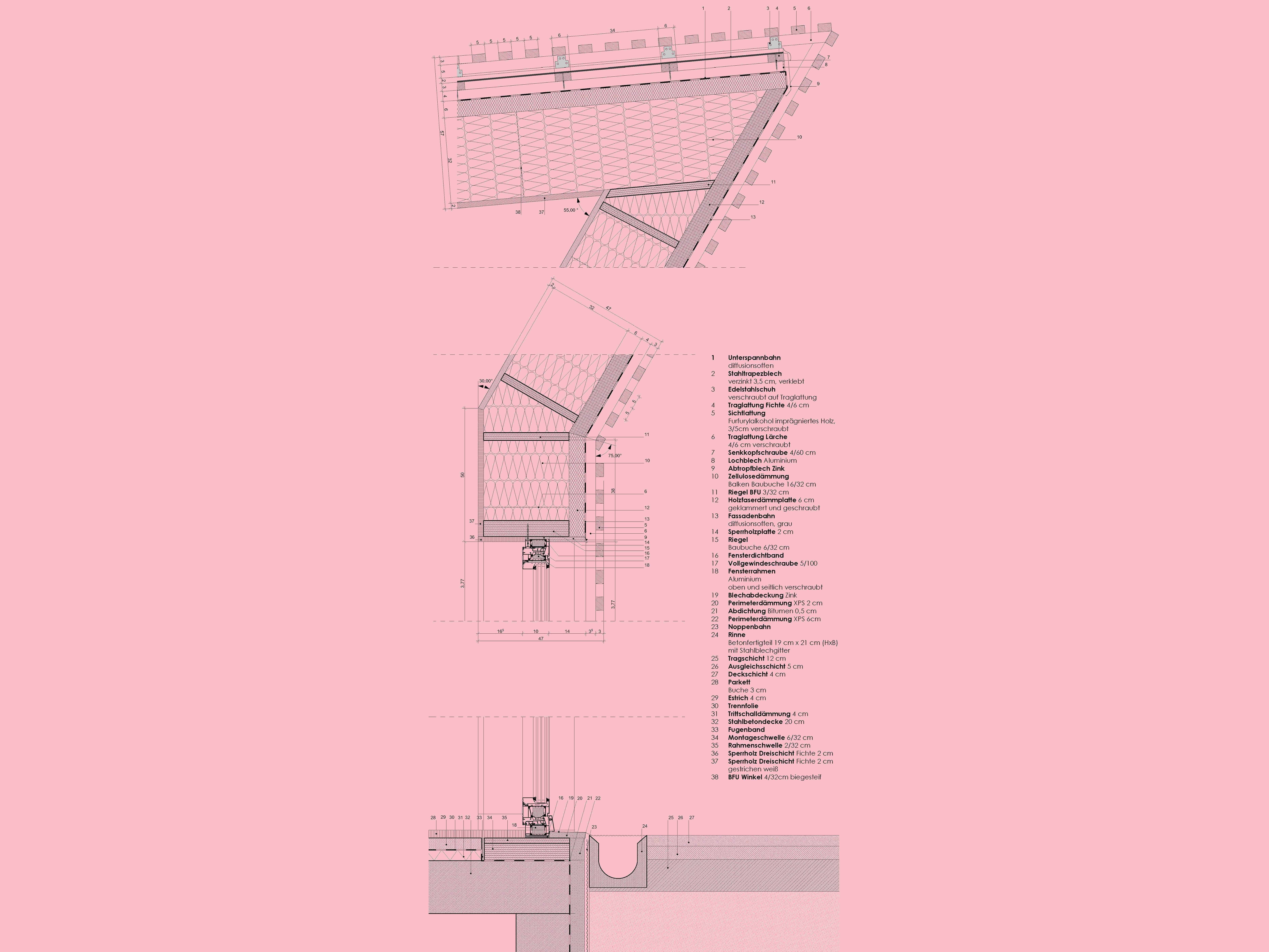

Project 2 - Bauko/Bauko-Detail.jpg
Facade detail
